PROPOSAL OFFER FOR SANITARY HOSE( Cold& Hot water ) PRODUCTION

SELCUK ARICAN sales@arermakine.com.tr +905531421139

Machine Code	Technical Properties	Machine	Price USD$ /EX-W	Advised Qty

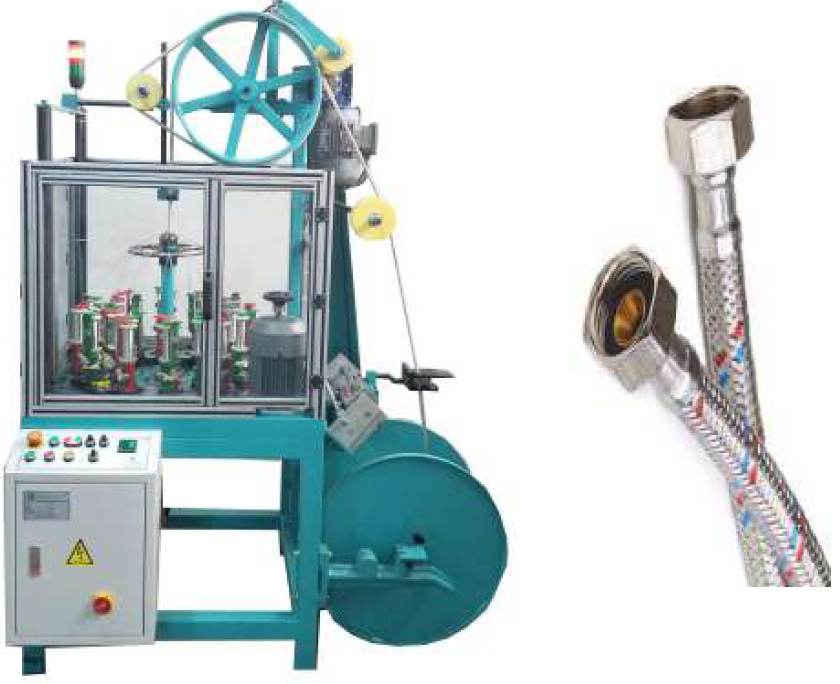

YHUÇ-24-1 (120)Wire Braiding Machine for Cold Water	YHUÇ-24-1 (120)Wire Braiding Machine number of spindle : 24 number of head : 4 Bobbin size : 55x92 mm Cycle : 280 rpm Braiding width : 6-18 mm Main Motor Power:0,75 kw- 900d/d 380V Take Up (SMALL) Motor Power:0,37 kw Bobin/wire(kg):1 kg wire/Bobin Weight:360kgs Prodution Speed:1 meter / Hour Go to Youtube Link		8500	1
Wire Winding	Wire Bobin Winding Machine -Bob-1 number of Bobin : 1 number of Big Coil/spool : 9 Bobbin size : 55x92 mm Go to Youtube Link		7500	1

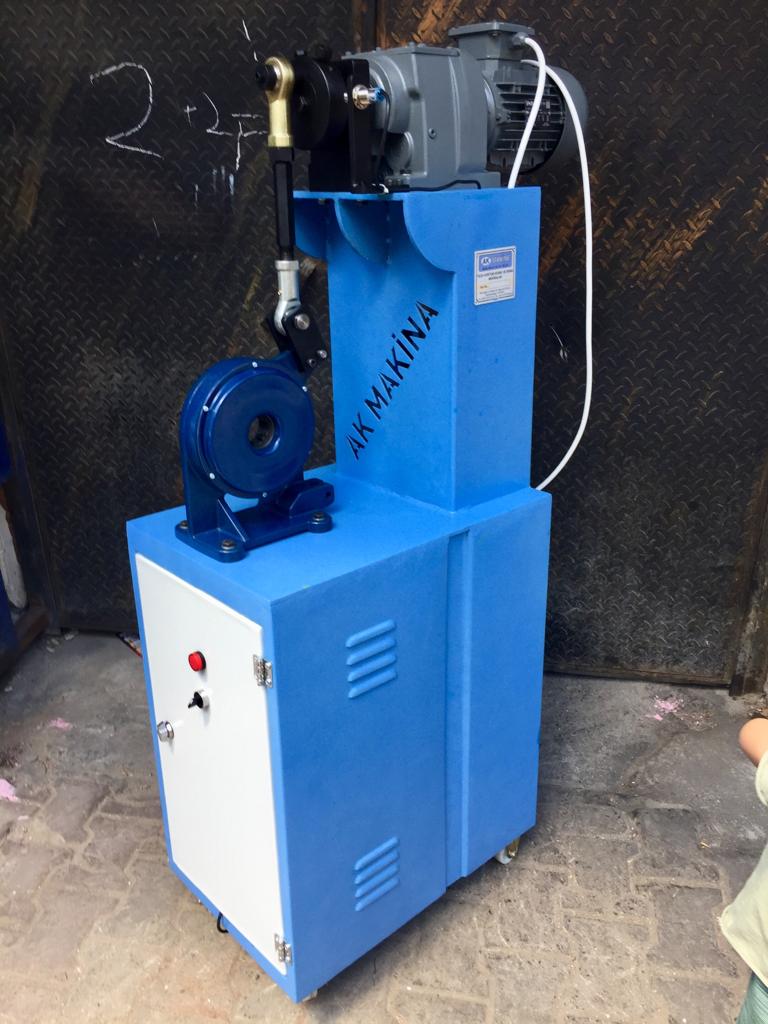

CRIMPING MACHINE	Crimping Machine On wire flex hose /Monphase electric ,driver system,two years warranty,		4500	1

PROPOSAL OFFER FOR COLD WATER FLEX HOSE PRODUCTION

Machine Code	Technical Properties	Machine	Price /EX-W	Advised Qty

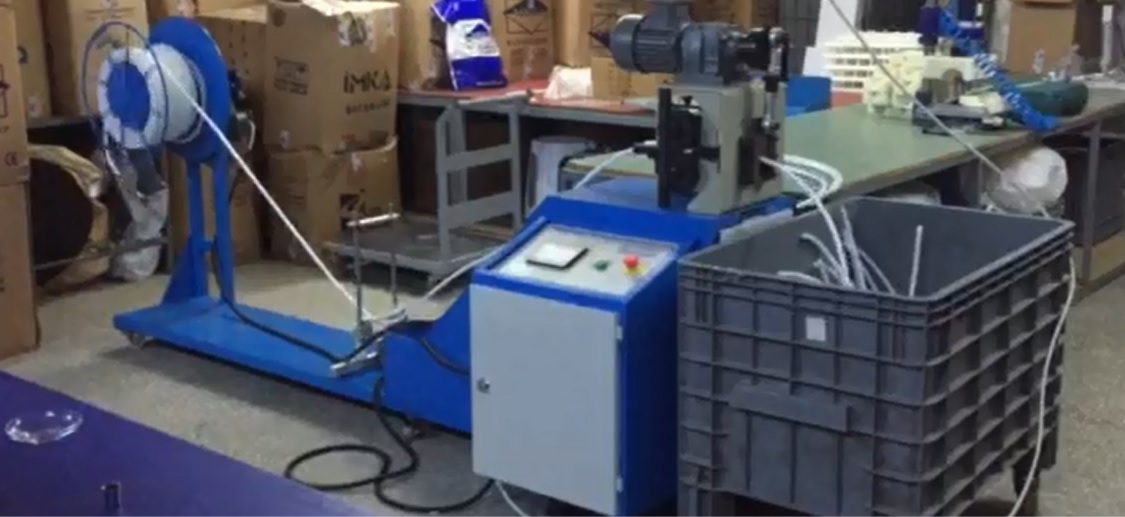

Cutting Hose	Cutting Machine For wire flex hose		5500	1

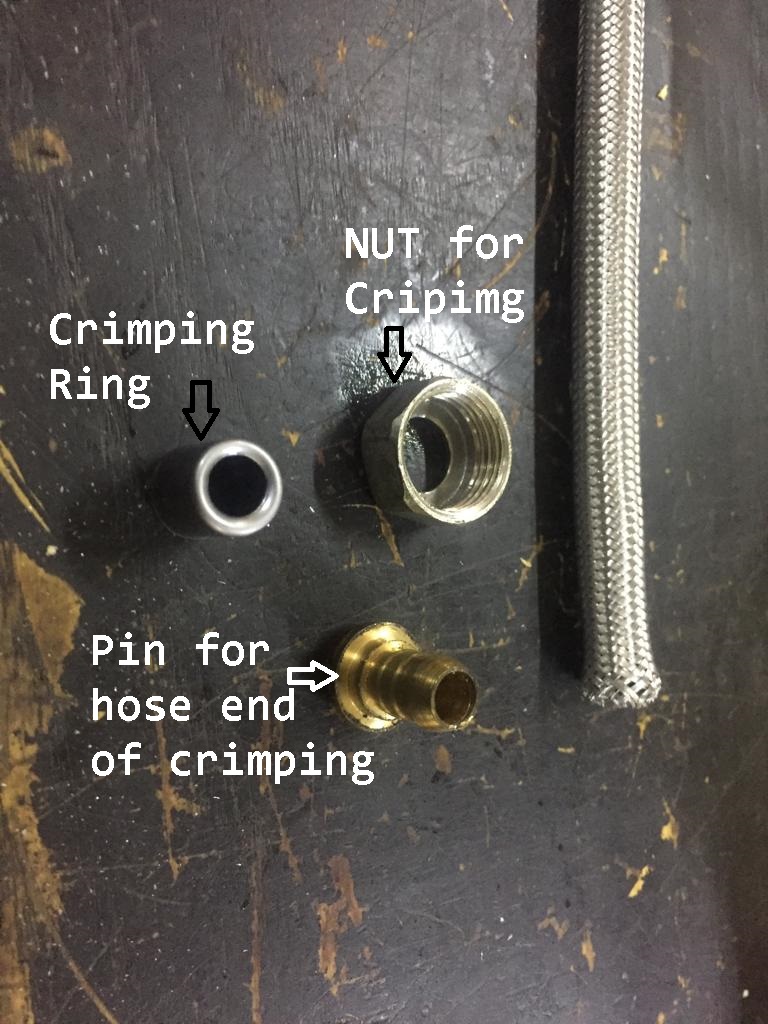

CRIMPING MATERIALS	Nut ,Ring and Pin for crimping consuming Materials		Pin+Nut=0.25USD and Ring=0.030USD( prices are to be Updated before final confirmation ,Because we are not producing)	1

Presented manufacturing line including proposal offer are needed max three persons to operate production

INSTALLATION AND TEST PRODCUTION WILL BE PRESENTED OUR FCATORY BEFORE SHIPMENT

WARRANTY IS TWO YEARS FOR ALL MECHANICAL PARTS

PAYMENT TERM: %50 ADVANCE ,REST AMOUNT AFTER TRIAL PERODUCTION & TEST CONFIRMATION WILL BE DONE BEFOFE SHIPMENT

ALL MACHINES AND MATERIALS ARE TURKİYE ORIGINATED

ARER TRES ÖRGÜ MAKiNELERI SANAYİ VE TİCARET LİMİTED ŞİRKETİ /MALTEPE MAH.DOKUMACILAR SİT. SOK.NO:2 ASLANER SAN.SİT.NO.9 TOPKAPI/MALTEPE/İSTANBUL / Tel:+90 212 483 2201 Tax. reg. No:DAVUTPAŞA/ 0740795127 www.arermakine.com.tr sales@arermakine.com.tr
